Party in a box

Some gear belongs in a professional studio, some belongs in an audiophile listening room, and some belongs at a good ol’ house party. The xDuoo DA-100 HD is one of those. Combining a Bluetooth receiver, DAC, headamp, and power amp with 50W per channel of power, this all-in-one is all about giving you the freedom and power to keep the music playing all night long.

50W per channel

Using a TI TPA3116 amplifier chip, the DA-100 can output 50W per channel of power–plenty for driving bookshelf and desktop speakers.

HD Bluetooth input

Connect your phone, laptop, tablet, or other device to the DA-100 and enjoy the stable connection and low latency of Bluetooth 5.0. It supports SBC, AAC, aptX, aptX_LL, aptX_HD, and LDAC formats.

USB input

Plug your Mac or PC into the DA-100 via the USB port and play your entire library. Plug in a pair of headphones into the headphone jack or send the music out to passive speakers to spread the joy.

Product highlights

• ESS ES9018K2M DAC chip
• 50W per channel
• HD Bluetooth input
• USB DAC
• MAX97220 headphone amp chip
• OLED screen

Specs

• Power supply: DC24V
• Display: 1.3” OLED
• Bluetooth version: 5.0
• Supported Bluetooth formats: SBC, AAC, aptX, aptX_LL, aptX_HD, LDAC
• Communication range: Around 10 meters
• USB input: plug and play, up to 16-bit/48kHz
• Power amplifier
• Output power: 2 x 50W
• THD+N: 0.1%
• Crosstalk: 90dB
• SNR: 90dB
• Headphone amplifier
• Output power: 125mW (1kHz, 32Ω load)
• THD+N: 0.05%
• Crosstalk: 75dB
• SNR: 110dB
• Suitable headphone impedance: 16-300Ω

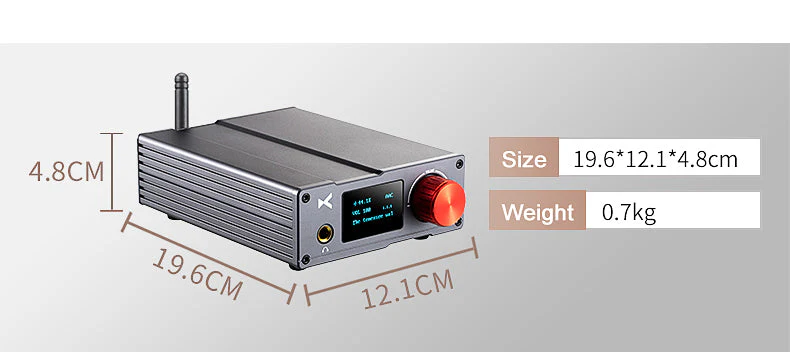

• Size: 7.7” x 4.76” x 1.88” (19.6cm x 12.1cm x 4.8cm)
• Weight: 1.5lbs (0.7kg)

What’s included

• Adapter
• AC cable
• Bluetooth antenna
• 6.35 to 3.5 connector
• User manual
• Warranty card
