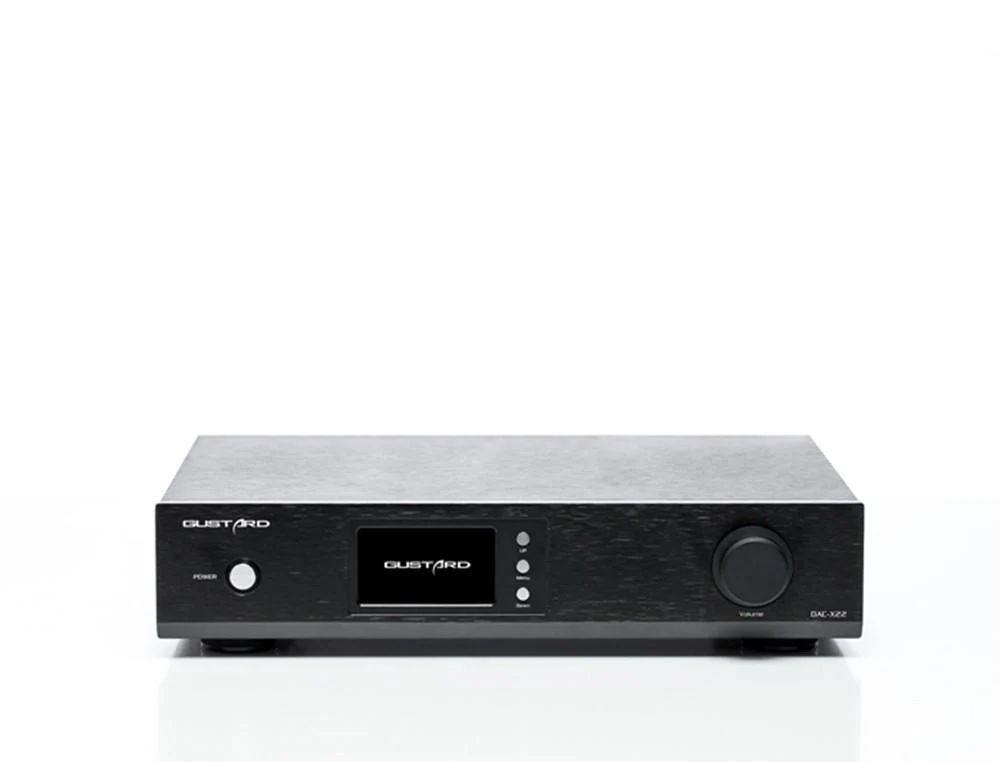

Gustard DAC-X22

The Gustard DAC-X22 uses the ESS ES9038PRO DAC chip, has a native full balance, a class division line, and a double completely independent power source. It has clock management and two asynchronous and synchronous clock modes. The whole interface supports DSD DOP decoding and PCM384K DSD256. The CPLD programmable logic chip, 2nd PLL digital plastic, DOP demodulation, and PCM/DSD depop exclusive technology all combine to make this a stellar DAC.

Specs:

• DAC chip: ES9038PRO
• Coaxial: PCM 16–24bit/44.1, 48, 88.2, 96, 176.4, 192 kHz; DOP64
• Optical: PCM 16–24bit/44.1, 48, 88.2, 96, 176.4, 192 kHz; DOP64
• AES/EBU: PCM 16–24bit/44.1, 48, 88.2, 96, 176.4, 192 kHz; DOP64
• IIS: PCM 16–32bit/44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz; DSD Native DSD64, DSD128, DSD256, DSD512; DSD DOP DOP64, DOP128, DOP256
• USB: PCM 16–22bit/44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz; DSD64, DSD128, DSD256
• Fully balanced operation
• Class division line
• Double power source
• 2 asynchronous and synchronous clock modes
• Clock management
• 2nd PLL digital plastic
• DOP demodulation
• PCM/DSD depop exclusive technology
• Windows XP/Vista/special 7/8/10 system need to install the driver
• V3.34.0 version driver download
• Mac OS X 10.6.4 and above don't need driver
• Dimensions (excluding protrusions): 13 x 2.6 x 10.2 in (330 x 65 x 260 mm)
• Weight: 15.4 lbs (7 kg)
