From desktop to destination

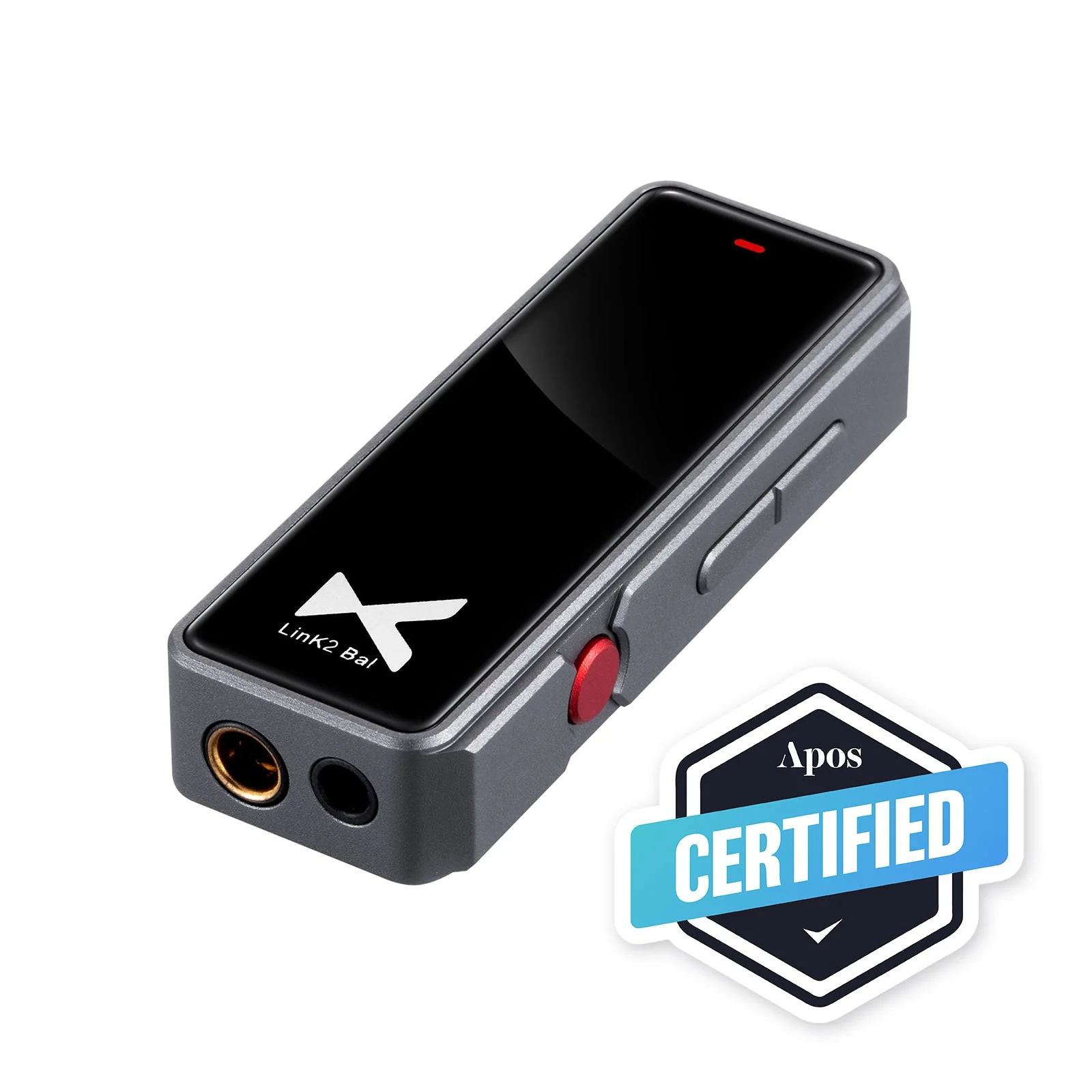

The xDuoo Link2 Bal (Link 2 Bal) is a DAC/Amp you can take anywhere, whether that's a desktop or an exotic destination. Its true balance design puts out loads of power while keeping crosstalk and noise as low as a dedicated desktop rig. With a USB Type-C port, it can be used with next-gen tablets and the Nintendo Switch.

Music, movies, gaming, and more

Listen to hi-res music from a laptop, take movie night to the next level with hi-fi sound, or up the Nintendo Switch’s audio game. The Link2 Bal’s USB Type-C port has you covered in every situation.

Be sure of your sound

The Link2 Bal’s LED light will change colors with the sample rate of the song: red for CD-quality PCM, blue for super-CD quality PCM, and green for DSD.

Product highlights

• True balanced architecture
• Dual DAC chips: CS43131
• 270mW output power
• 4.4 + 3.5 outputs
• SNR 127dB
• Native DSD256
• USB Type-C
• Multi-platform uses: laptop, tablet, iPhone, Android, Nintendo Switch
• LED sample rate indicator
• CNC processed body–no seams or screws

Spec

• DAC chip: CS43131 x2
• Input port: USB Type-C
• Output port: 3.5mm + 4.4mm

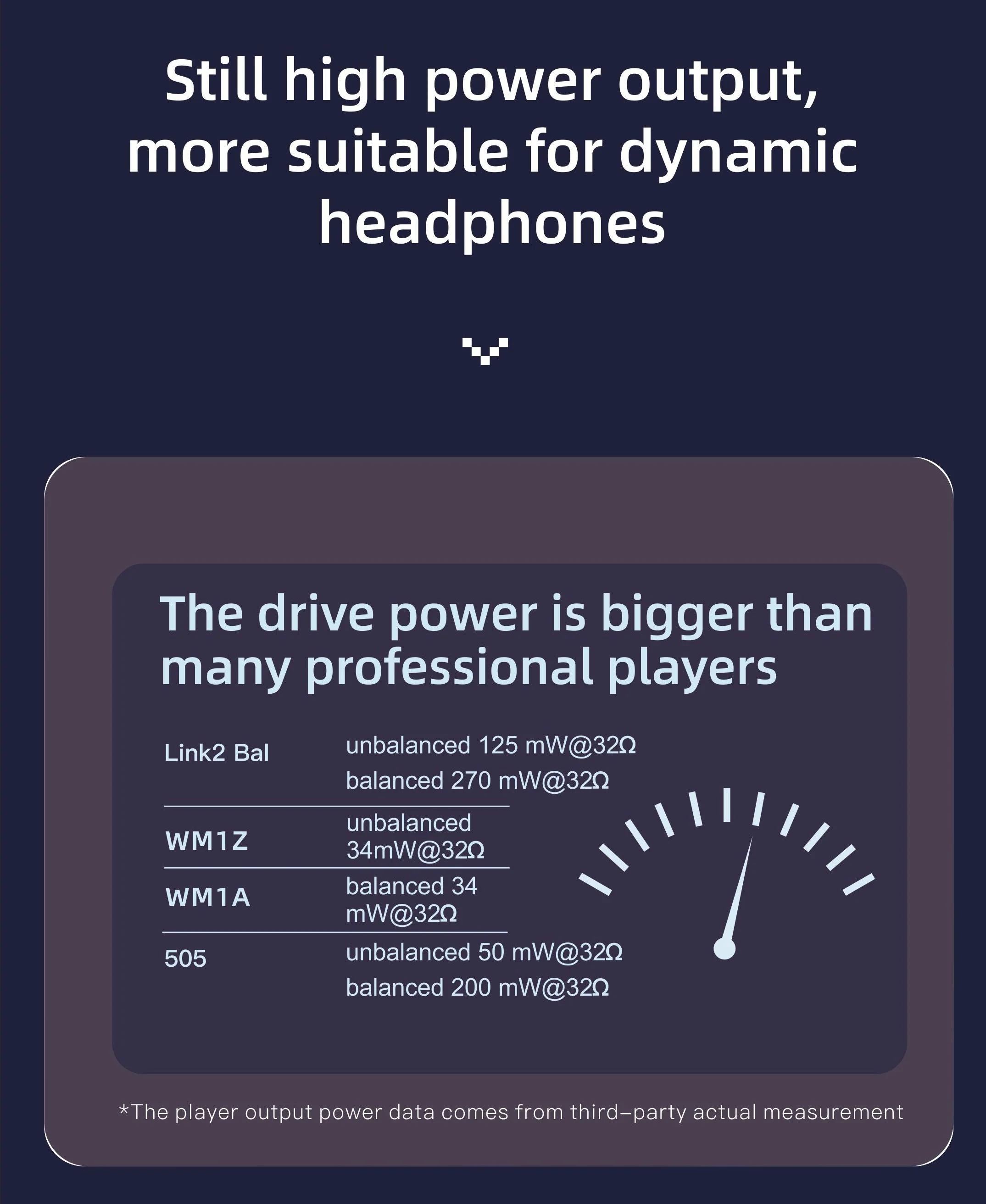

• Output power
• 3.5mm: 125W @32Ω
• 4.4mm: 270W @32Ω
• Sample rate support
• PCM: 16-32bit/ 44.1-384kHz
• DSD: DSD64-256
• Frequency response: 20Hz - 20kHz (±0.5dB)
• THD+N
• 3.5mm: 0.001%
• 4.4mm: 0.0007%
• SNR
• 3.5mm: 123dB
• 4.4mm: 123dB
• Crosstalk
• 3.5mm: >77dB
• 4.4mm: >120dB
• Weight: 0.9oz (28g)
• Size: 2.4 x 0.9 x 0.5” (63mm x 23.5mm x 13mm)

What’s included

• xDuoo Link2 Bal DAC/Amp

• Manual
• Warranty card
• Lightning cord
• USB Type-C cord

What pairs well

• Moondrop Starfield IEMs
