Back and better than ever

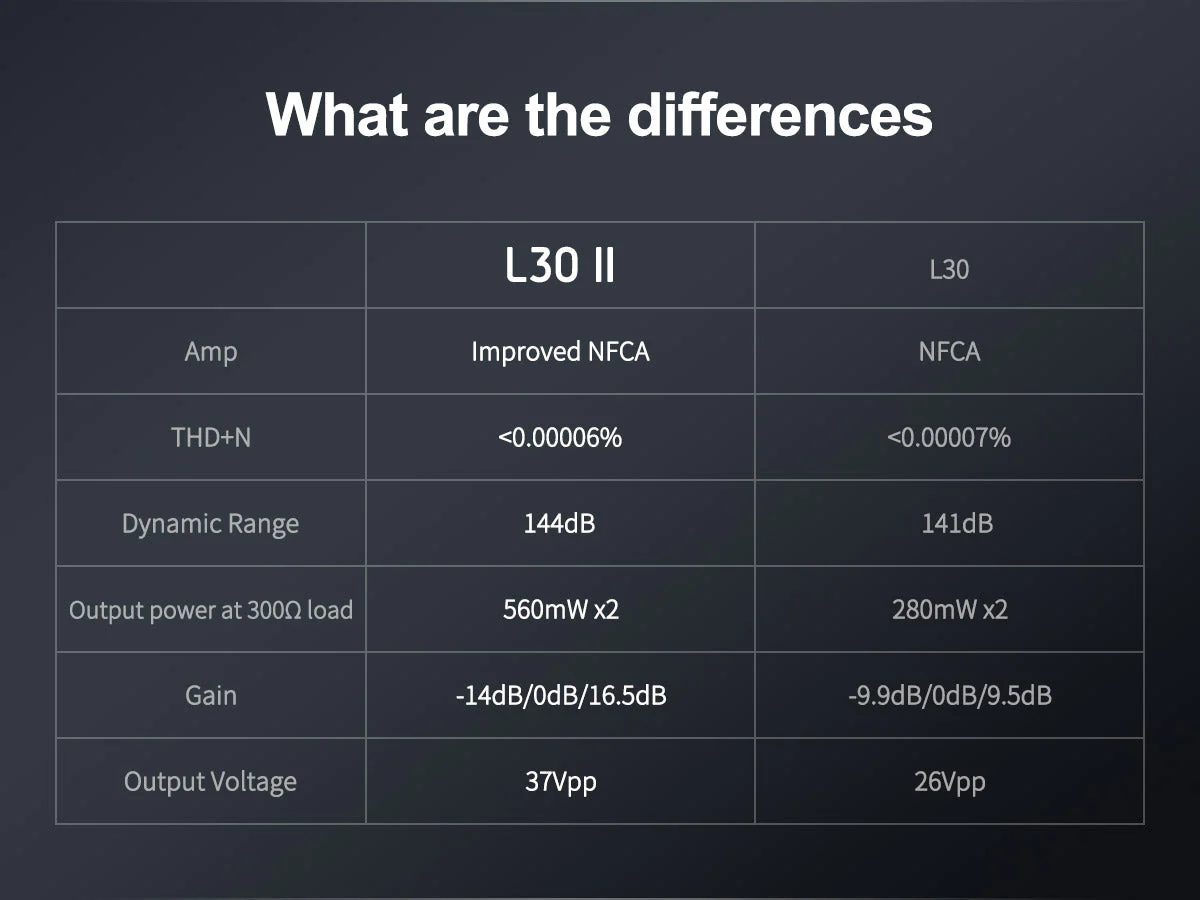

The second generation of the TOPPING L30 amplifier is here. With a totally redesigned NFCA amplifier, the L30 II makes significant improvements over its predecessor: better THD+N level, better dynamic range, double the output power, wider gain spread, and increased output voltage.

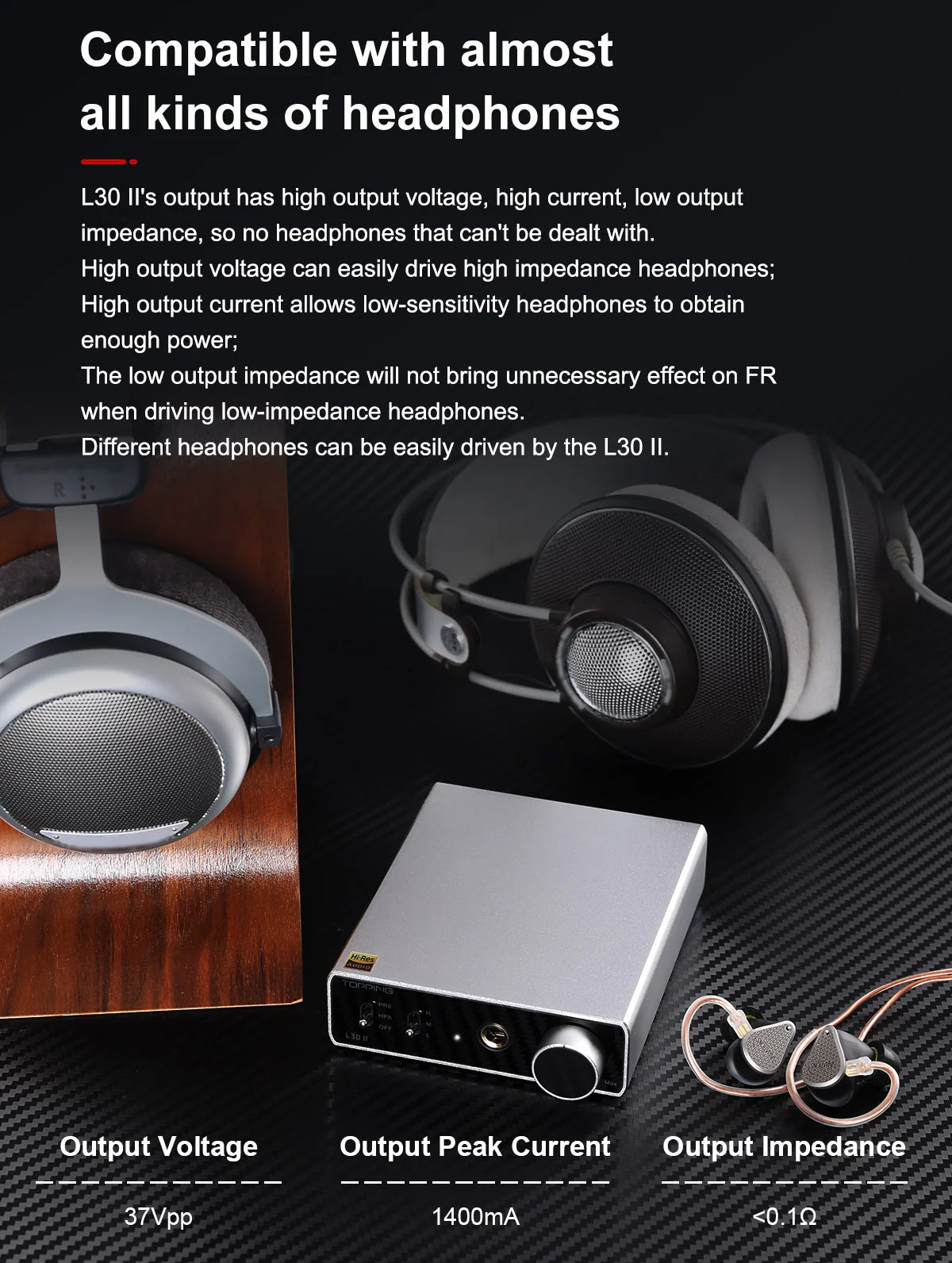

Compatible with all kinds of headphones

With high output voltage, high current, and low output impedance, the L30 II can power any kind of headphone. It easily drives power-hungry planar magnetics, highly-sensitive IEMs, and everything in between.

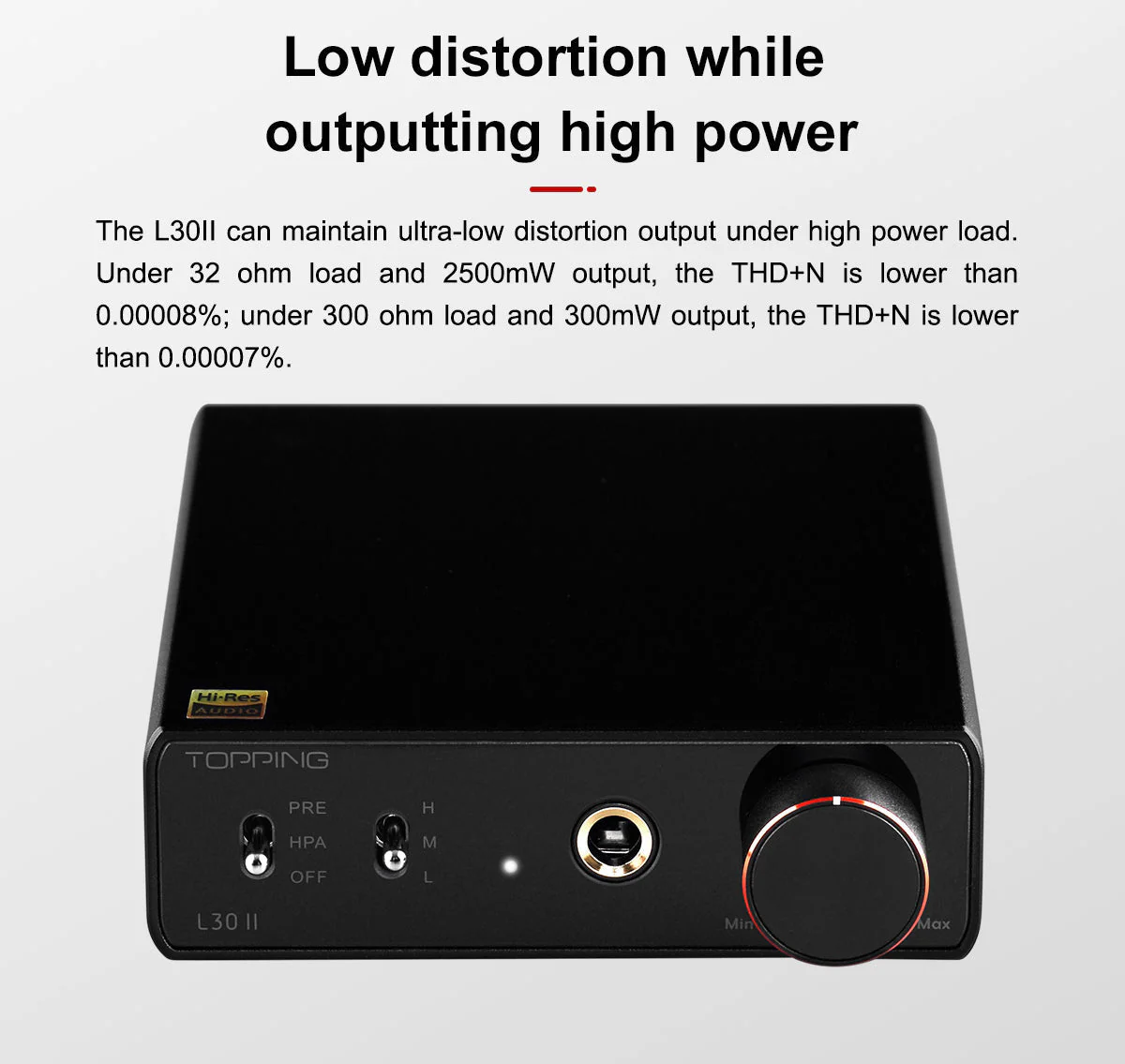

High power, low distortion

The L30 II manages ultra-low distortion beneath a high power load. For example, under a 32Ω load and 2500mW of output, the THD+N is lower than 0.00008%; under a 300Ω load and 300mW of output, the THD+N is lower than 0.00007%.

Three gain settings

With three gain options from -14dB to 16.5dB, the L30 II can cover a wider range of needs for different headphones than the original model.

Product highlights

• NFCA module
• 3500mW x2 @16Ω / 560mW x2 @300Ω
• 3 gain settings
• <0.00006% THD+N
• 133dB DNR
• <0.3uVrms Noise
• <0.1Ω output impedance

Specs

Headphone amplifier specs

• THD+N @1kHz (A-wt)
• <0.00006% @500mW (32Ω)
• <0.00005% @80mW (300Ω)
• THD @ 20-20kHz 90kBW
• <0.00008% @500mW (32Ω)
• <0.00007% @80mW (300Ω)
• SNR @MAX OUT 1kHz (A-wt): 144dB
• Dynamic range @1kHz (A-wt): 144dB
• Frequency response: 20Hz - 40kHz (±0.05dB)
• Output level
• Low gain: 14Vpp
• Medium gain: 31Vpp
• High gain: 37Vpp
• AP measured noise level (A-wt)
• Low gain: <0.7uVrms
• Medium gain: <0.7uVrms
• High gain: <1.5u Vrms
• Actual noise level (A-wt)
• Low gain: <0.3 uVrms
• Medium gain: <0.3 uVrms
• High gain: <1.4 uVrms
• Channel crosstalk @1kHz: -92dB
• Input sensitivity
• Low gain: 25 Vrms
• Medium gain: 11.2 Vrms
• High gain: 2.0Vrms
• Gain
• Low gain: -14dB
• Medium gain: 0dB
• High gain: 16.5dB
• Output impedance: <0.1Ω
• Output power
• 3500mW x2 @16Ω THD+N <0.1%
• 2700mW x2 @32Ω THD+N <0.1%
• 2000mW x2 @64 THD+N<0.1%
• 560mW x2 @300Ω THD+N<0.1%
• Load impedance: >8Ω

Pre-amplifier specs

• THD+N @1kHz (A-wt): <0.00006%
• THD @20-20kHz 90kBW: <0.00007%
• SNR @MAX OUT 1kHz (A-wt): 144dB
• Dynamic range @1kHz (A-wt): 144dB
• Frequency response: 20Hz - 40kHz (±0.05dB)
• Output level
• Low gain: 14Vpp
• Medium gain: 31Vpp
• High gain: 37Vpp
• AP measured noise level (A-wt)
• Low gain: <0.7 uVrms
• Medium gain: <0.7 uVrms
• High gain: <1.5 uVrms
• Actual noise level (A-wt)
• <0.3 uVrms
• <0.3 uVrms
• <1.4 uVrms
• Channel crosstalk @1kHz: -92dB
• Input sensitivity
• Low gain: 25 Vrms
• Medium gain: 11.2 Vrms
• High gain: 2.0 Vrms
• Gain
• Low gain: -14dB
• Medium gain: 0dB
• High gain: 16.5dB
• Output impedance: 20Ω

What’s included

• TOPPING L30 II Amplifier
• AC adapter
• 6.35mm to 3.5mm adapter
• User manual
• Warranty card

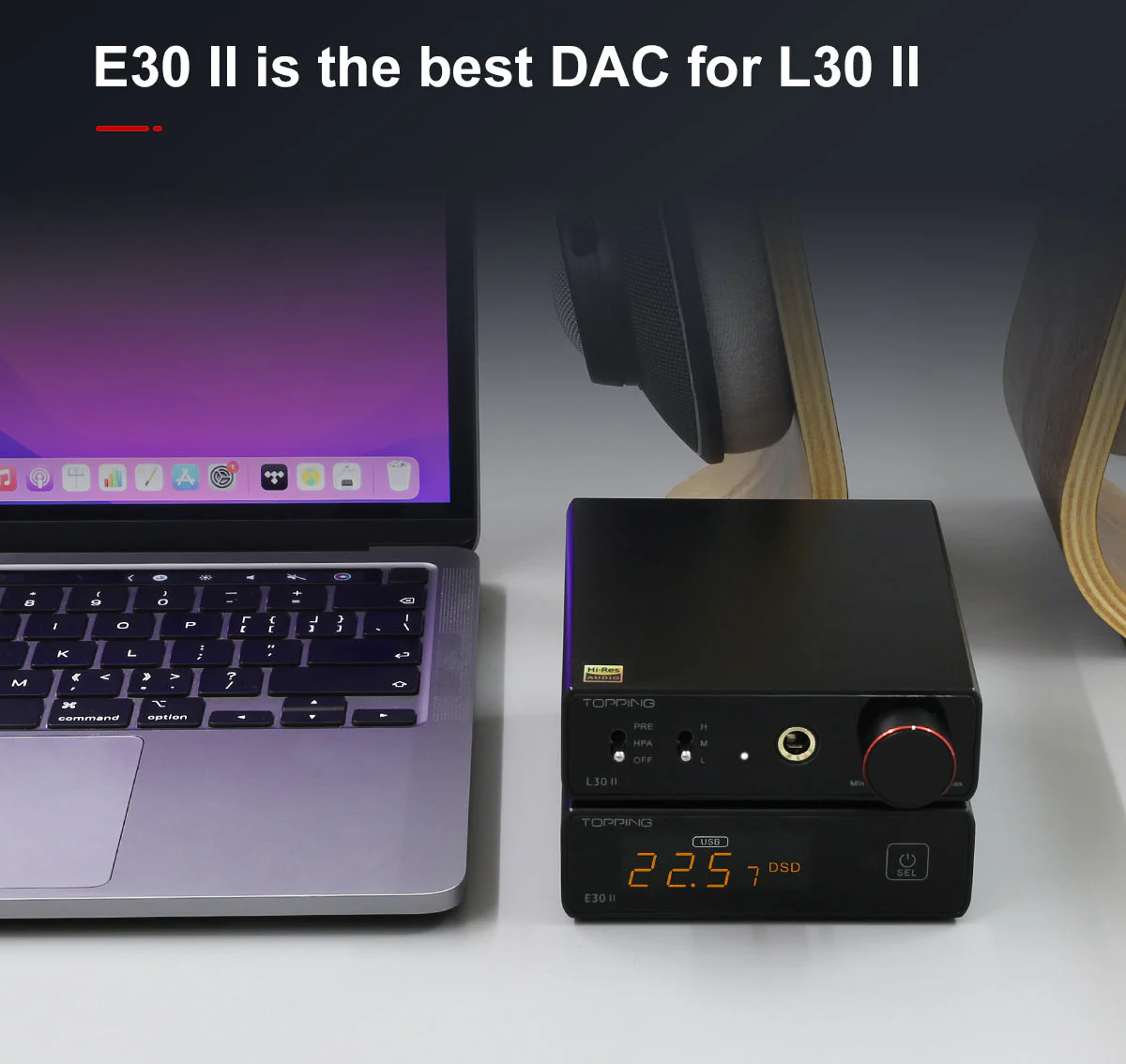

What pairs well

• TOPPING E30 II DAC
