Power-packed and Versatile

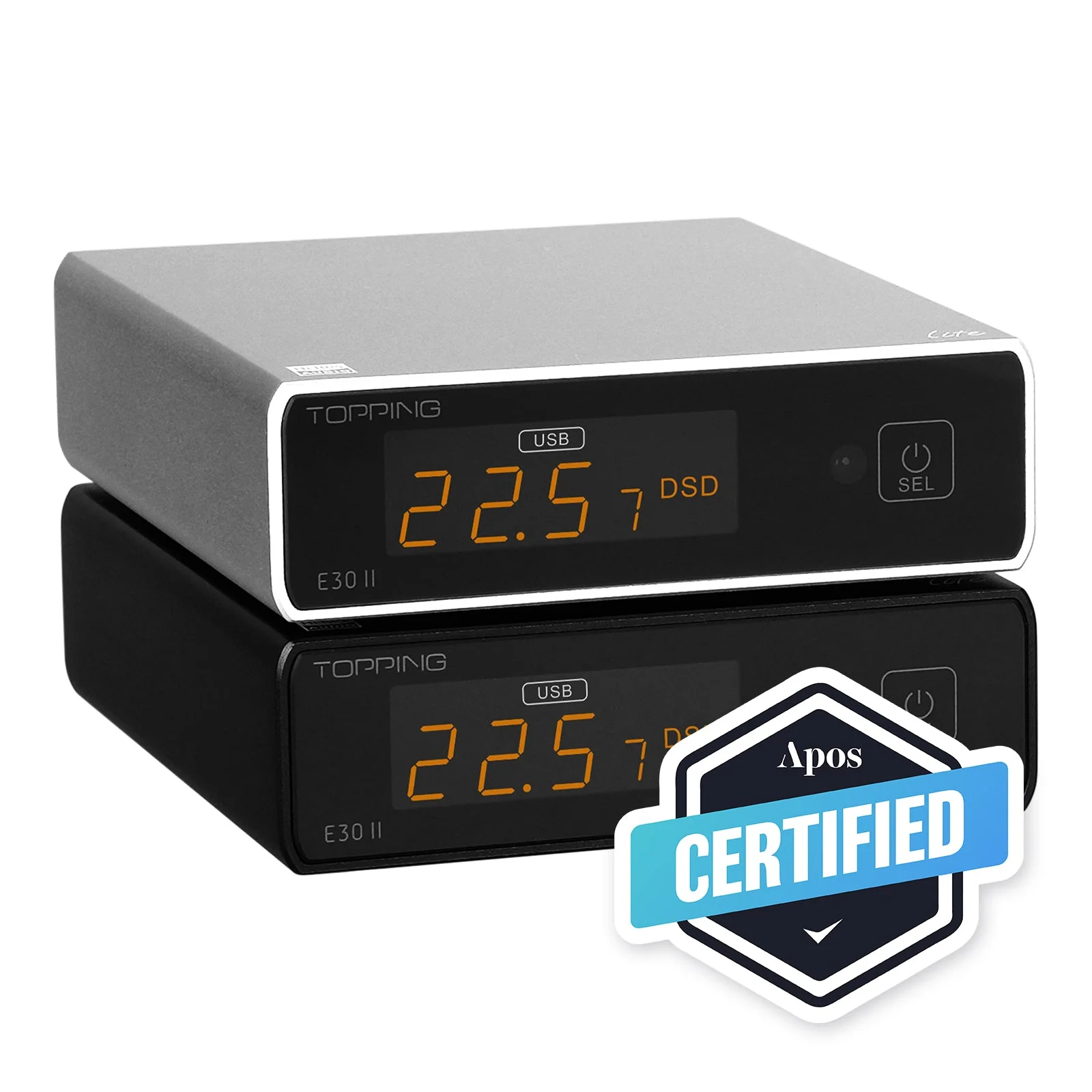

Setting a new benchmark in digital-to-analog conversion, the TOPPING E30 II Lite DAC introduces a myriad of advanced features, leveraging top-tier components such as the AK4493S chip, XMOS XU208 processor, and versatile connectivity options. This DAC lives up to the expectations of discerning audiophiles with its ability to handle high-resolution audio and flexible functionalities.

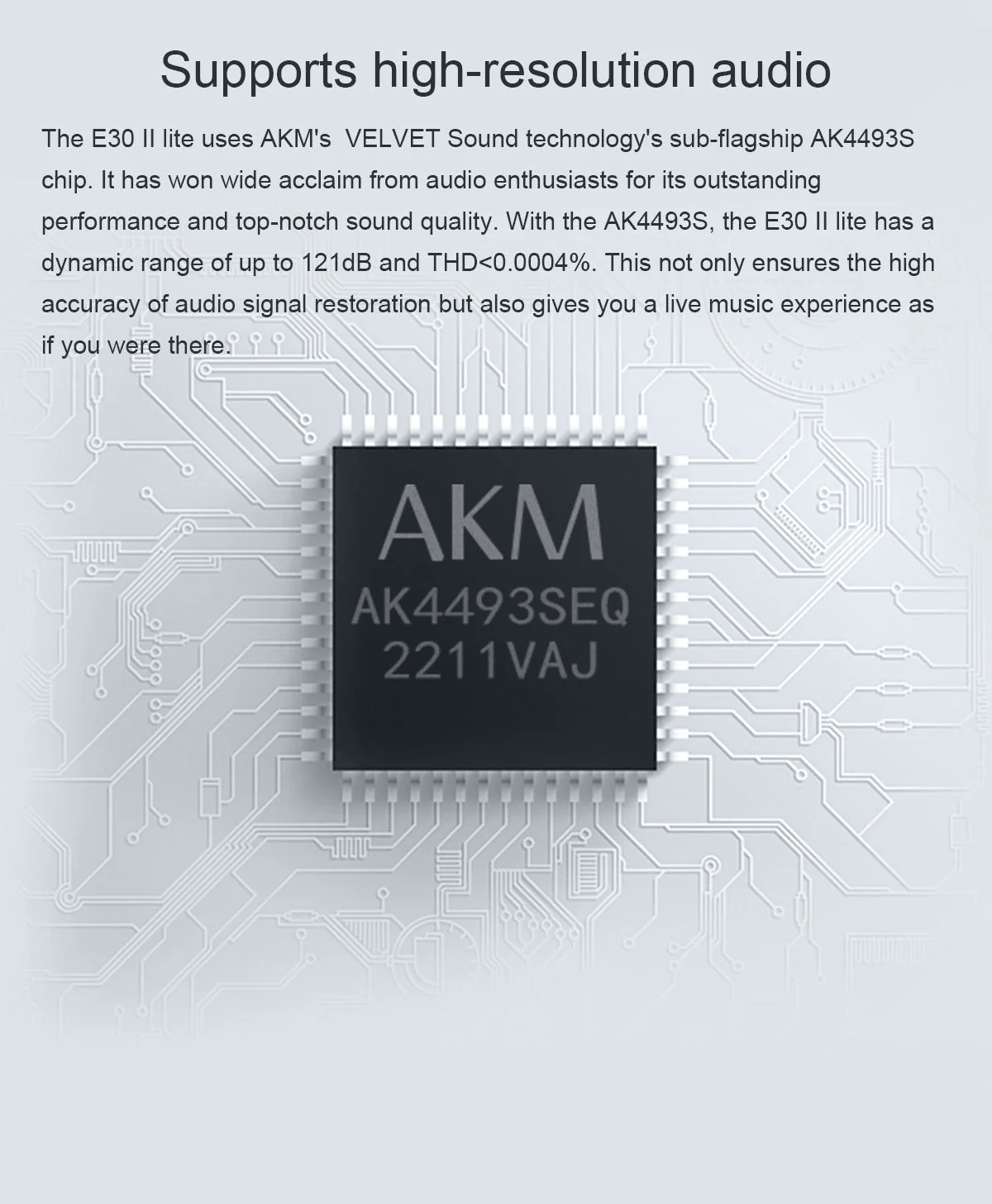

High-resolution Audio with AK4493S

The E30 II Lite is the embodiment of high-fidelity audio, employing AKM's VELVET Sound technology via the acclaimed AK4493S chip. With a dynamic range reaching up to 121dB and an impressively low THD of less than 0.0004%, this DAC ensures a high level of audio signal accuracy and a captivating live music experience.

Seamless Playback with XMOS XU208

Sporting the powerful XMOS second-generation processor, the E30 II Lite can support playback of audio streams up to DSD512 and PCM768kHz, making it compatible with a wide variety of operating systems including Windows 10, Windows 11, MAC, Linux, and iOS/Android systems. This DAC provides an optimal HiFi music source for your PC, without the worry of jitter affecting sound quality.

Connectivity and Power Flexibility

From traditional digital turntables, CD players, to set-top boxes and game consoles, the E30 II Lite has you covered. Its optical and coaxial inputs support up to 24bit/192kHz, revitalizing your traditional audio equipment with new sound. Powered by DC 5V, it can be powered up by a USB port of a PC, mobile phone charger, or even a power bank, ensuring easy access anywhere and anytime.

Product highlights

• Utilizes AKM's VELVET Sound technology's sub-flagship AK4493S chip
• Supports high-resolution audio streams up to DSD512 and PCM768kHz
• Equipped with the XMOS XU208 processor for enhanced performance
• Jitter as low as -153dB for improved sound quality
• Coaxial and optical inputs supporting up to 24bit/192kHz
• Flexible power supply options for ease of use
• Integrated with Discrete LNRD circuit for stable and low-noise power supply

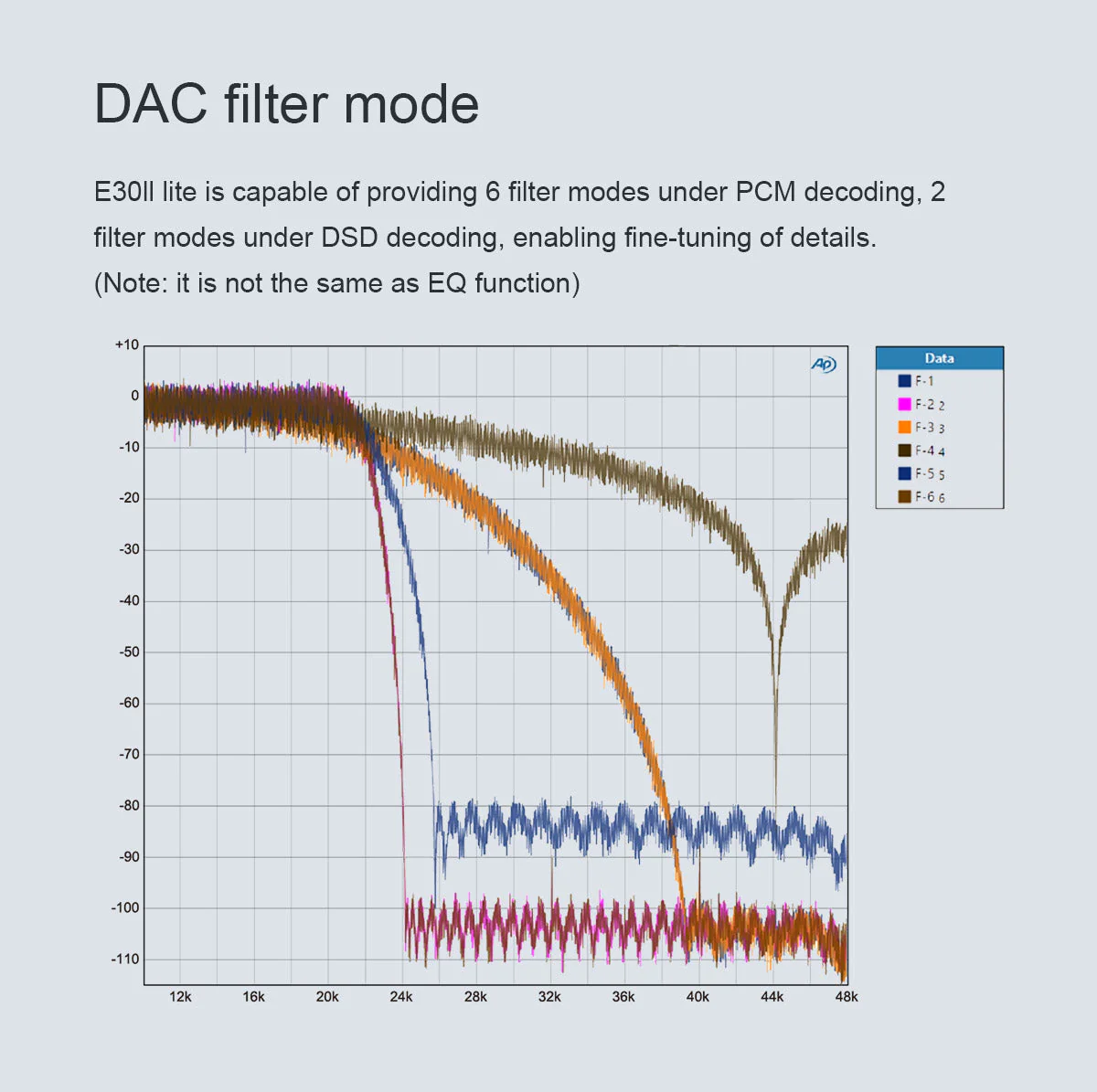

• Offers multiple filter modes for PCM and DSD decoding
• Auto On/Off function for user convenience
• Preamp mode for easy volume control

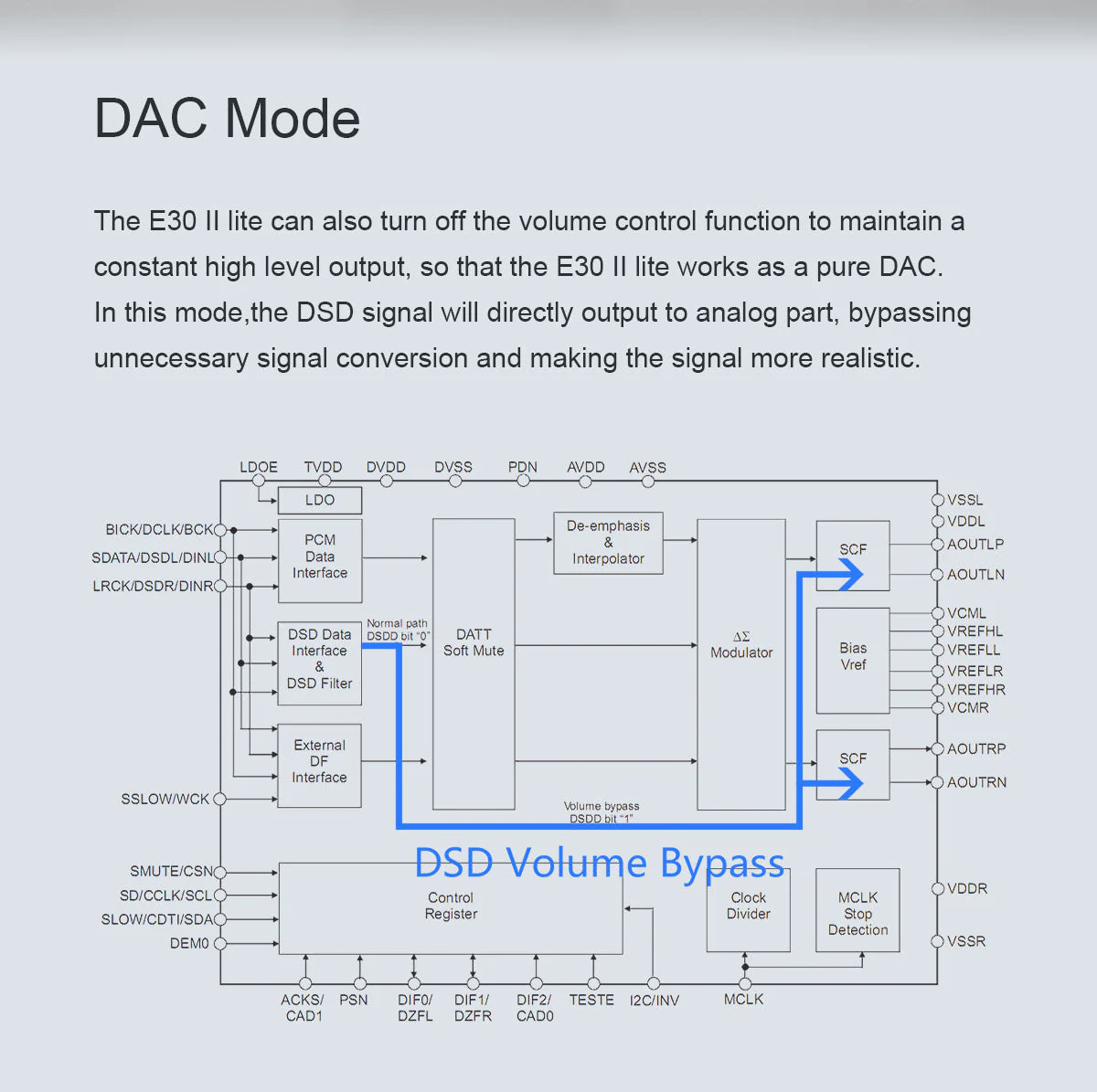

• DAC mode for pure DAC output

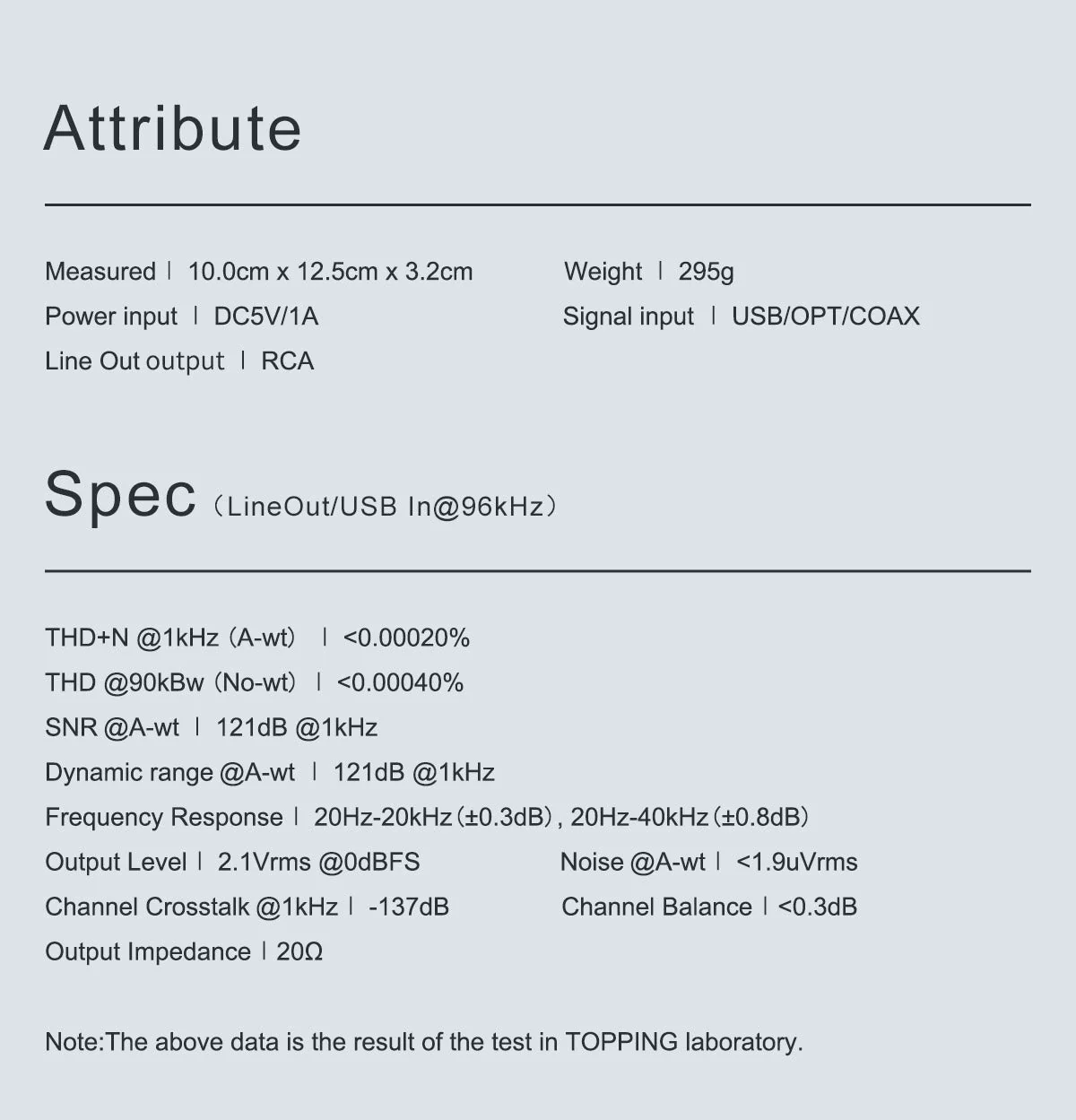

Specs

• Power input: DC5V/1A

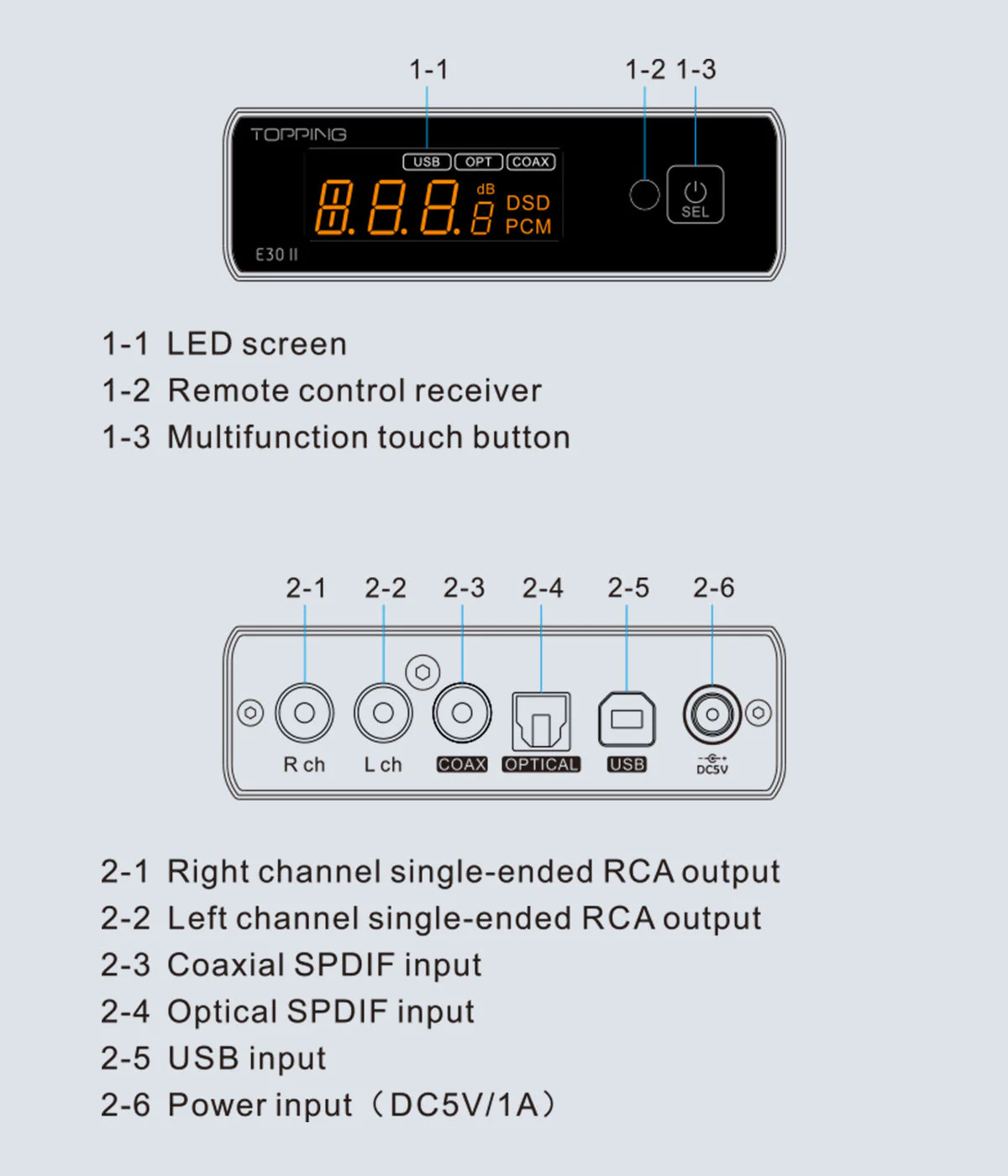

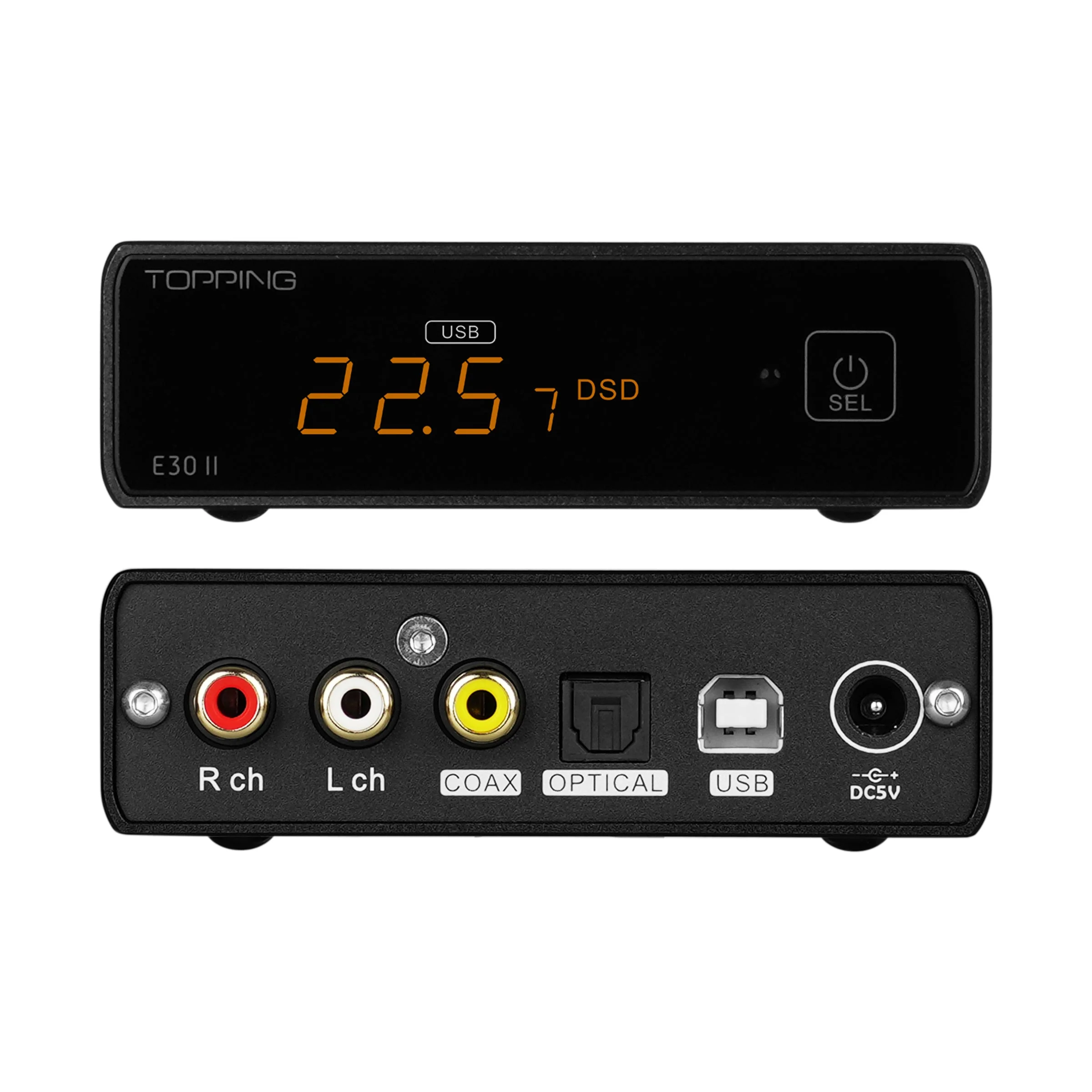

• Signal input: USB/OPT/COAX
• Line out output: RCA

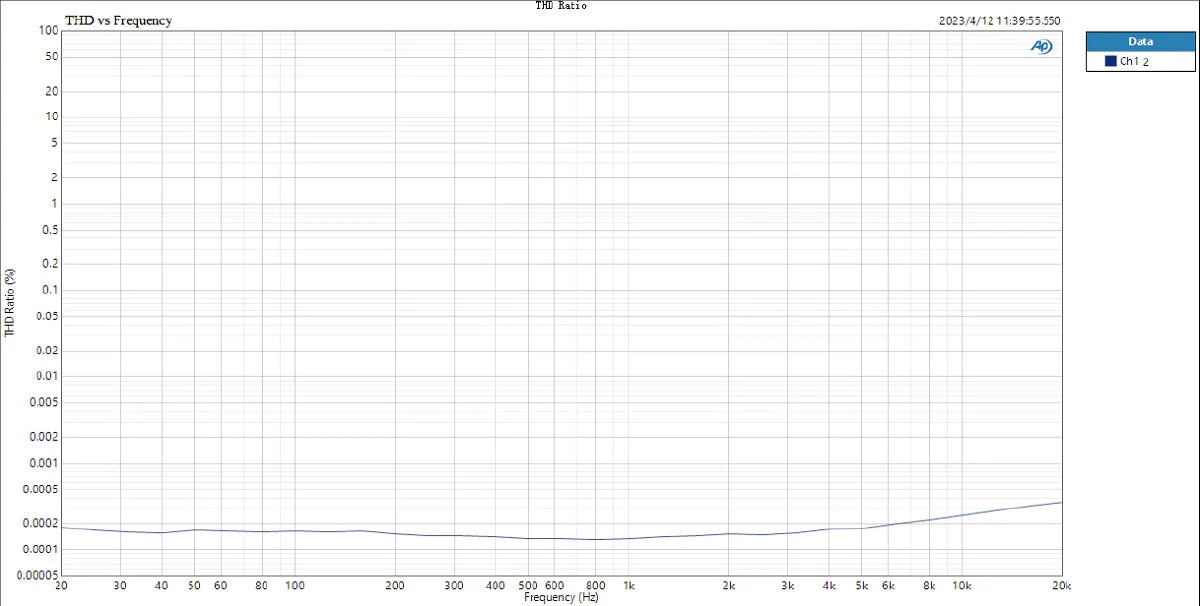

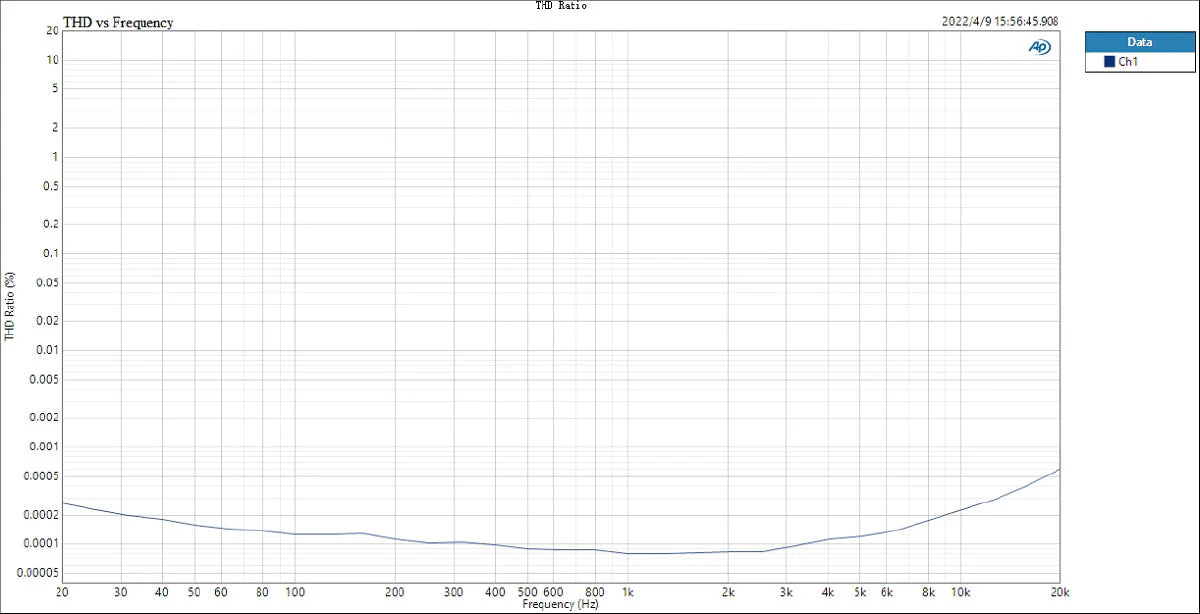

• Total Harmonic Distortion (THD): <0.0004%
• SNR: 121dB
• Dynamic Range: Up to 121dB

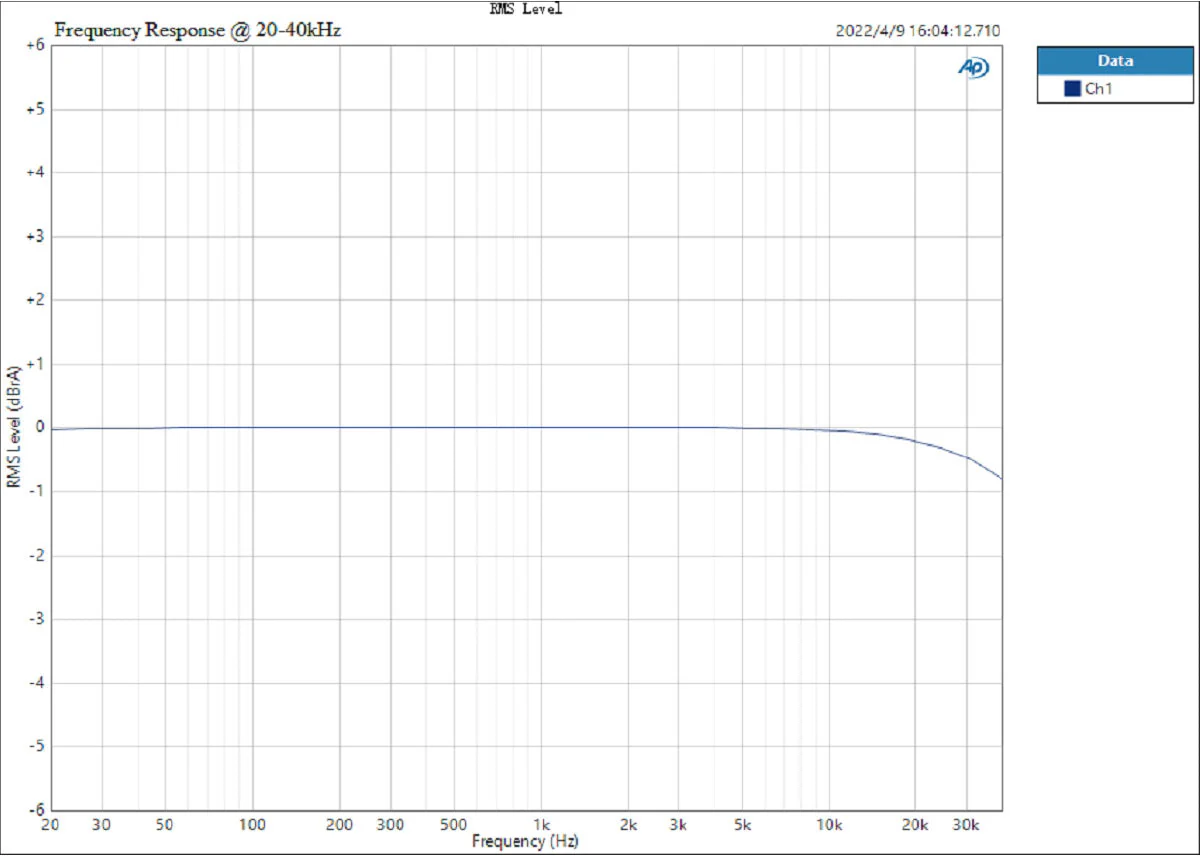

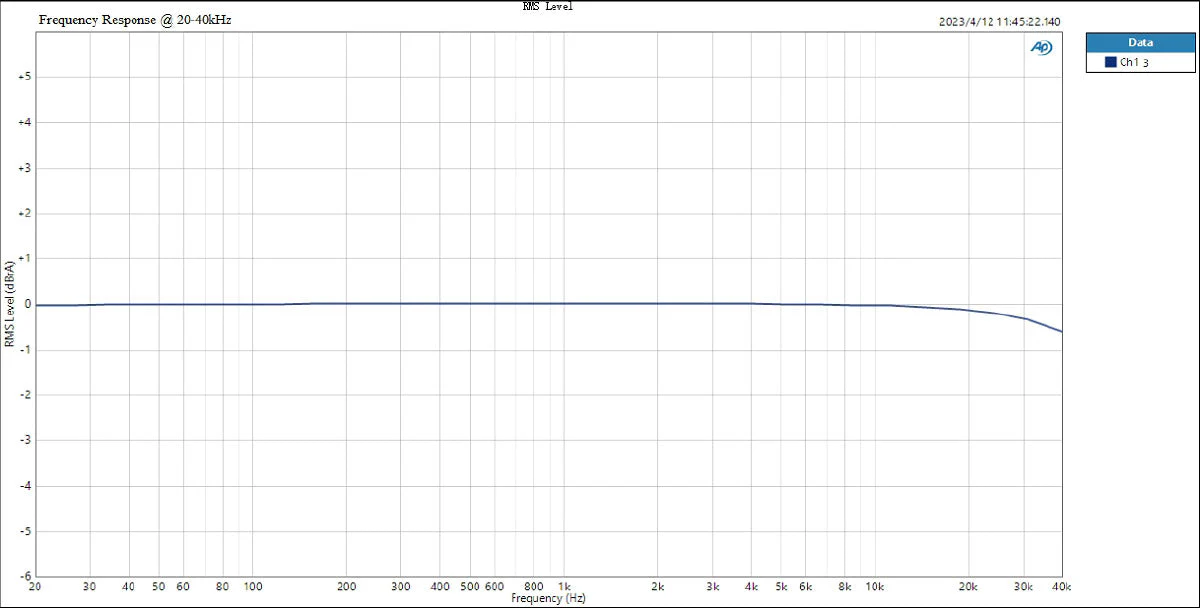

• Frequency response: 20Hz - 40kHz
• Output level: 2.1Vrms
• Noise: <1.9uVrms
• Channel crosstalk: -137dB
• Channel balance: <0.3dB
• Output impedance: 20Ω
• Supports up to DSD512 Native and PCM 32-bit/768kHz
• DAC: AK4493S
• Processor: XMOS XU208
• Power supply: DC 5V
• Weight: 0.65lbs (295g)

• Dimensions: 3.9” x 4.9” x 1.2” (10cm x 12.5cm x 3.2cm)

What's included

• 1 x TOPPING E30 II Lite AK4493S DAC
• 1 x Remote control
• USB cable
• DC cable
• User manual
• Warranty card
