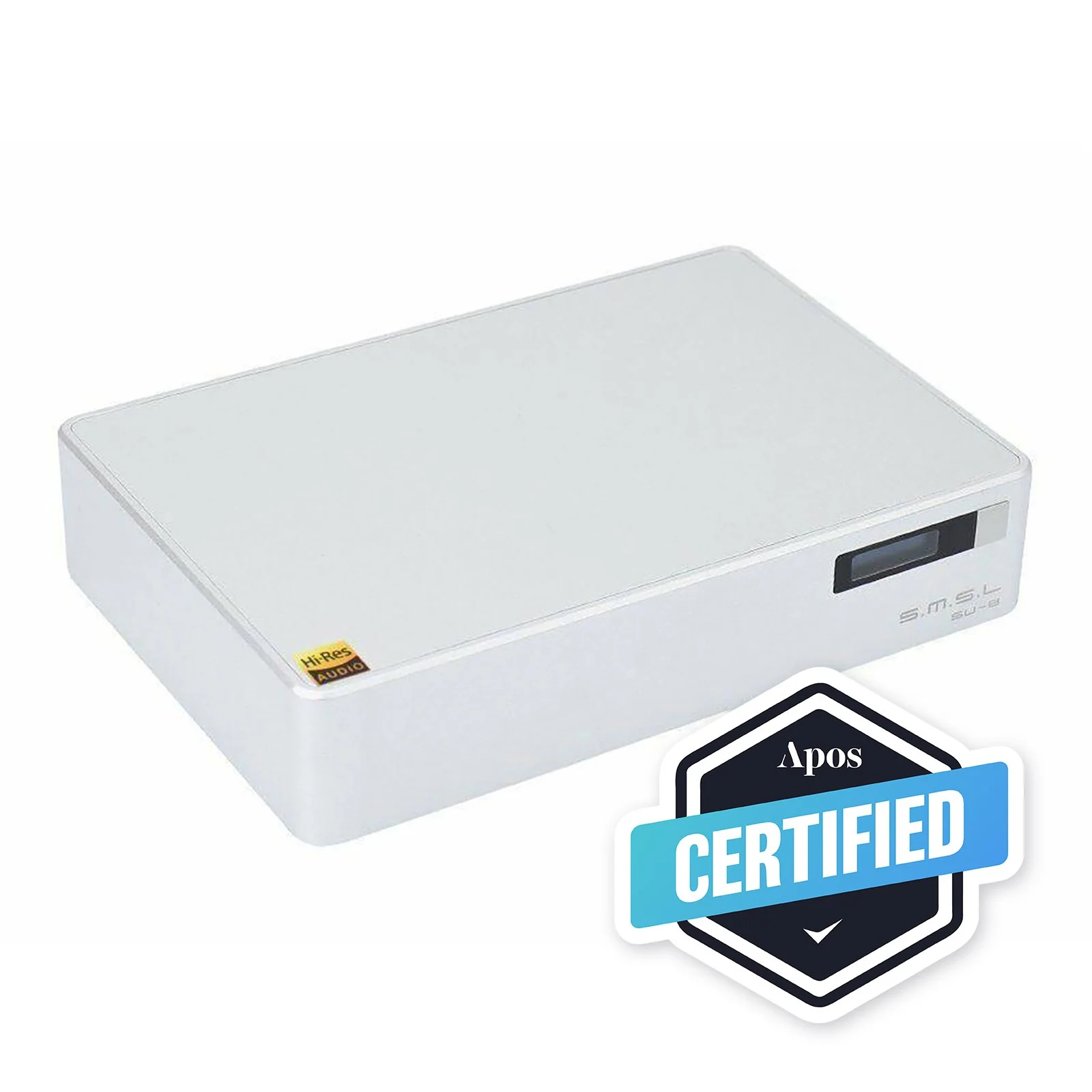

SMSL SU-8 Version 2 DAC (Apos Certified)

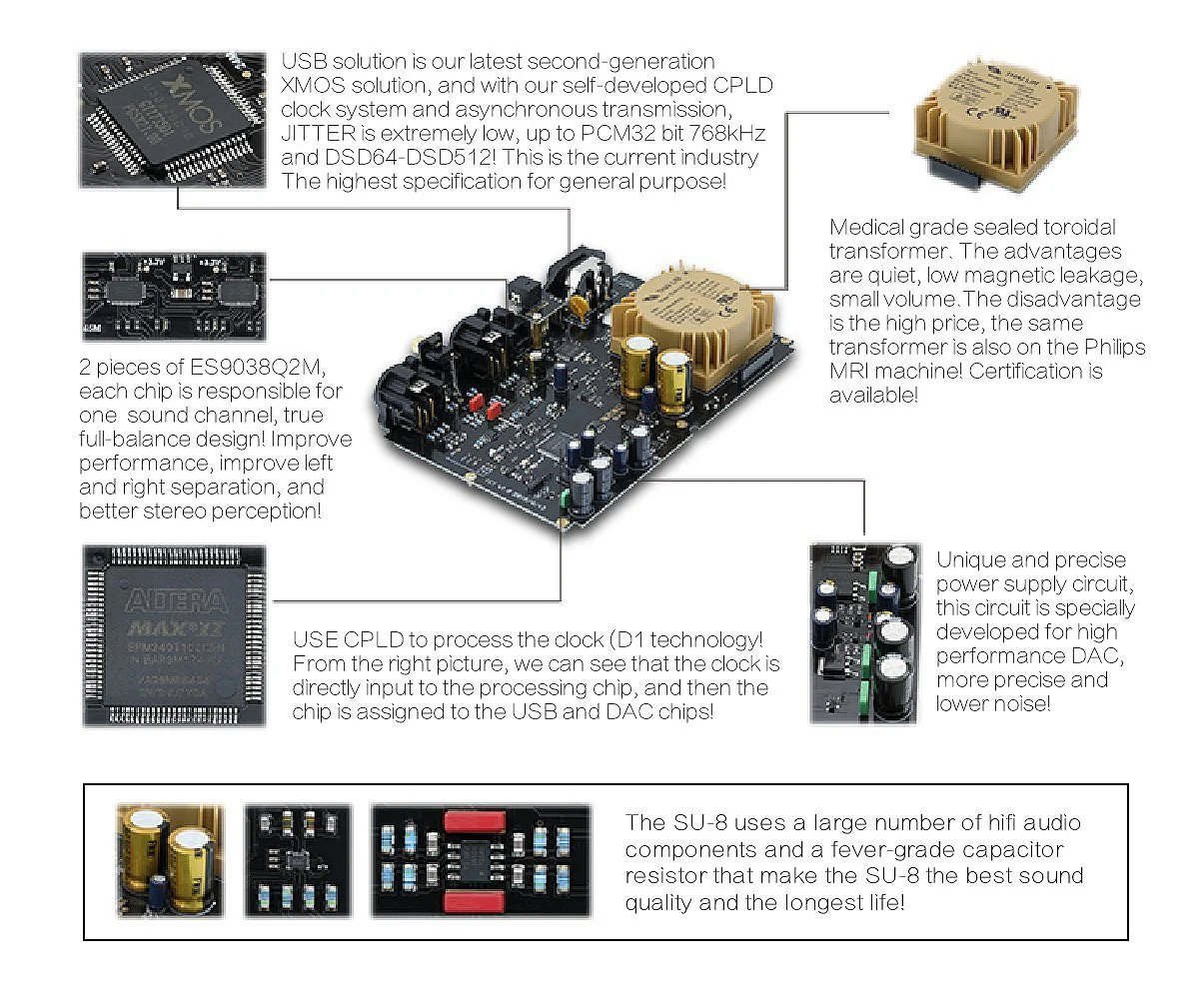

• ESS technology latest ES9038Q2M DAC, with the new 32-bit HyperStream II architecture, improving sound quality and DoP function.
• 2nd generation of XMOS USB audio solution xCore200, PCM sampling rate supported up to 32bit/768kHz and DSD up to DSD512.
• Ultra-low jitter asynchronous design and using ultra-low phase noise crystal as audio clock.
• Every input port supported DSD streaming, coaxial and optical supported to DSD64 by DoP technology via 24bit/176.4kHz SPDIF frame.

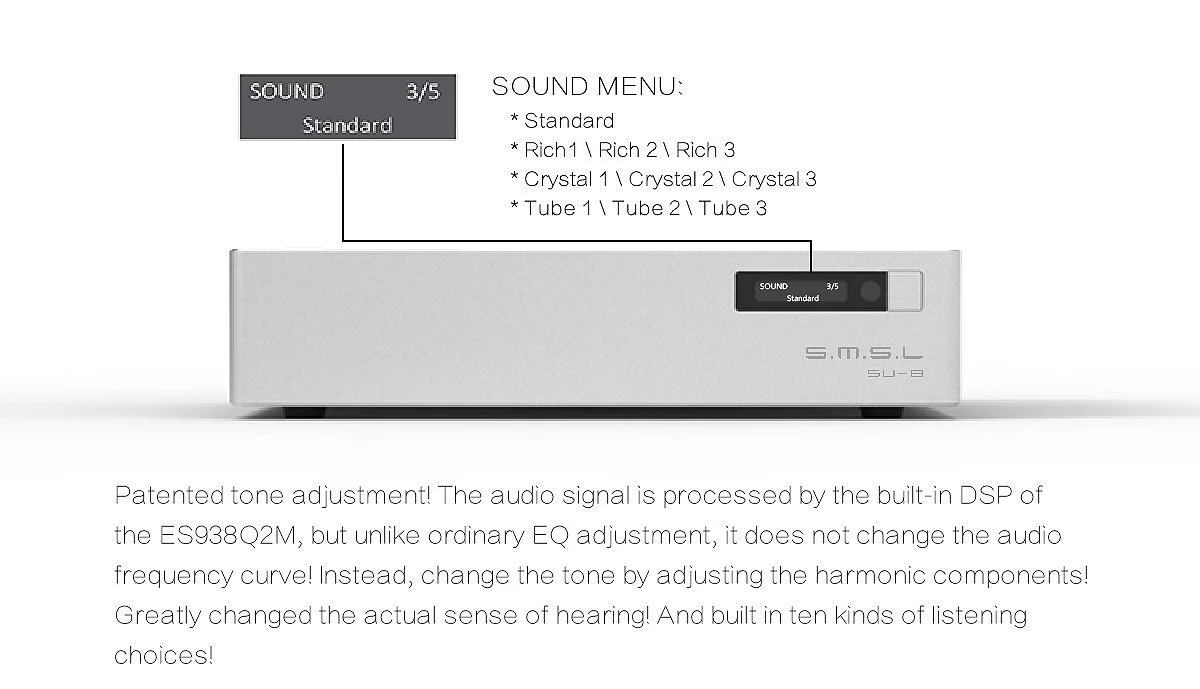

• There is 9 types of Sound color setting, not the digital filters, this feature using the DSP of ES9038Q2M to adjust the level of 2nd and 3rd distortion, make it sounds different.

Input ：USB / Optical / Coaxial
Output：RCA , XLR
Output Level：2Vrms(RCA) ,4Vrms(XLR)

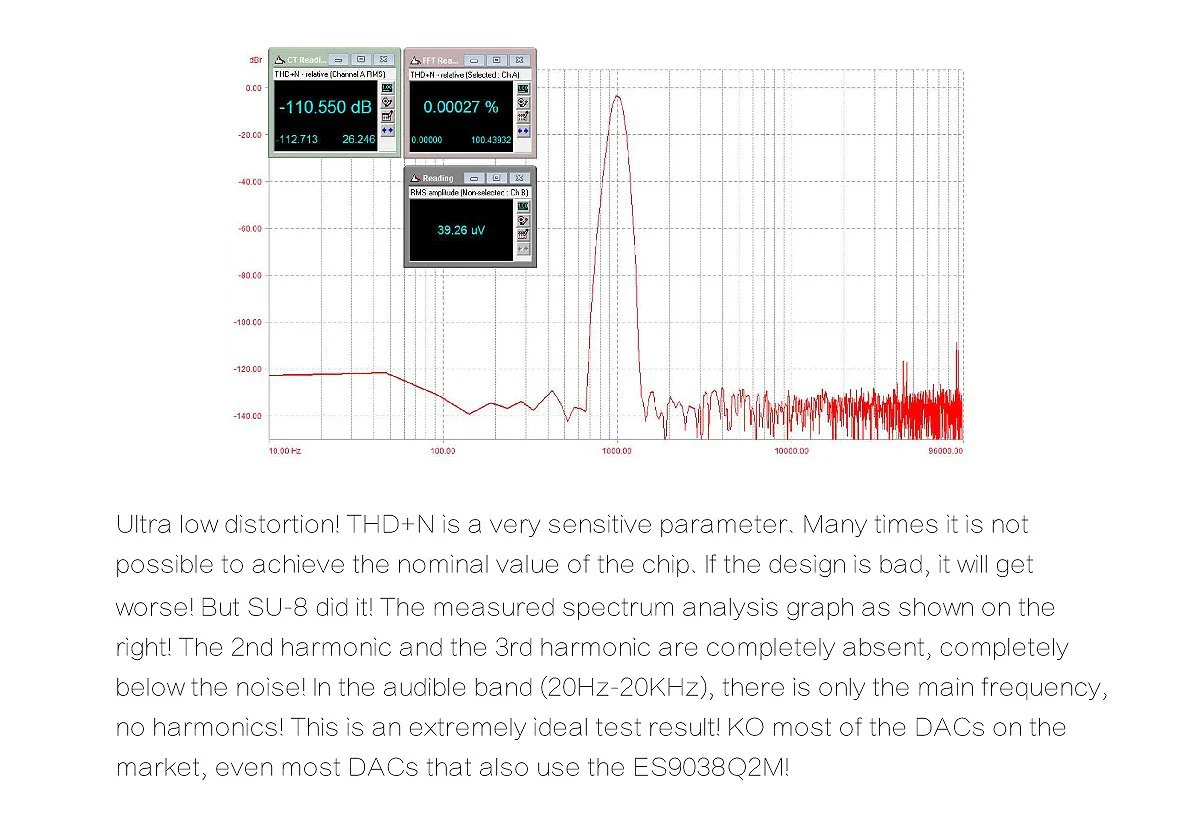

THD+N：0.0003%
Dynamic range：120dB
SNR：116dB
USB compa bility：Windows 7 / 8 / 8.1 / 10 Mac OSX10.6 or Later / Linux

Bit depth
USB：1bit-32bit
Optical/coaxial：1bit-24bit
Sampling rate
USB：PCM:44.1-768kHz DSD:2.28224-22.5792MHz
Optical/coaxial：32-192kHz DSD64(DoP)
Consumption Power：3W
Standby power：＜0.1W

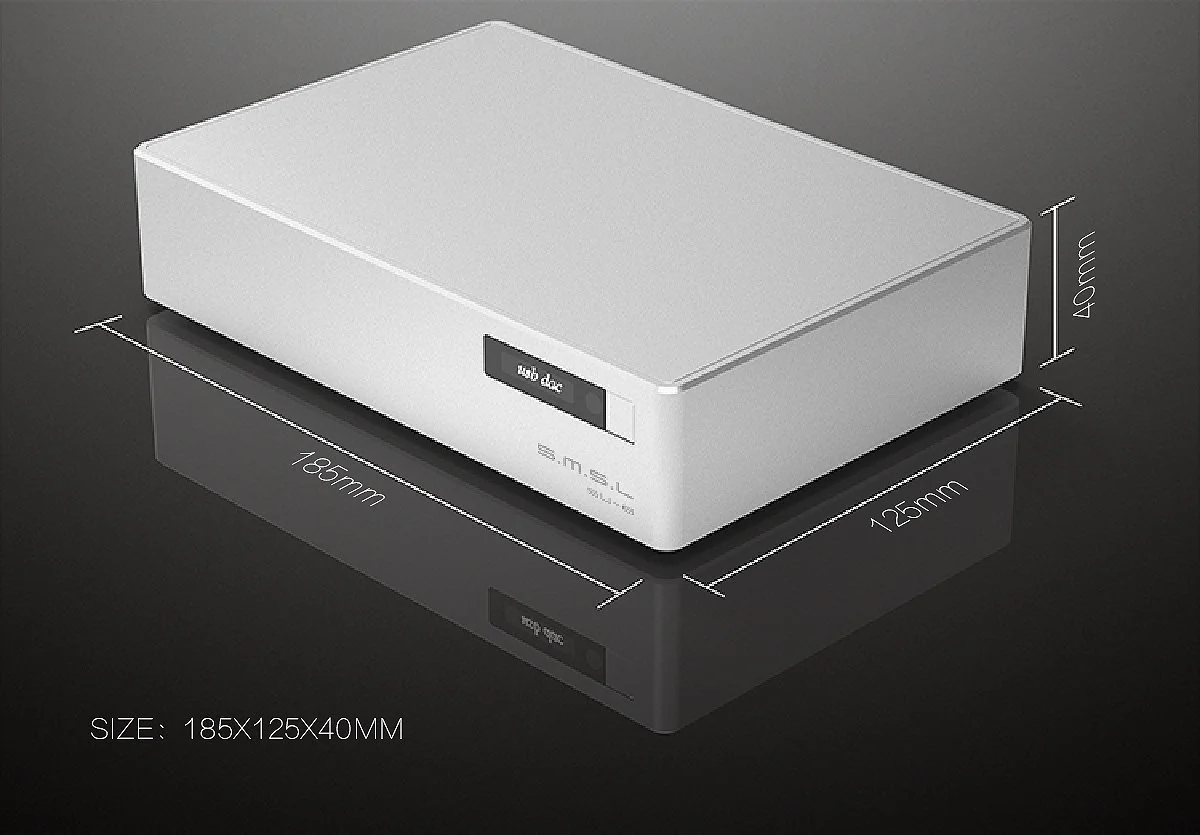

Size：185x40x125 (WxHxD)
Weight 1.0kg
